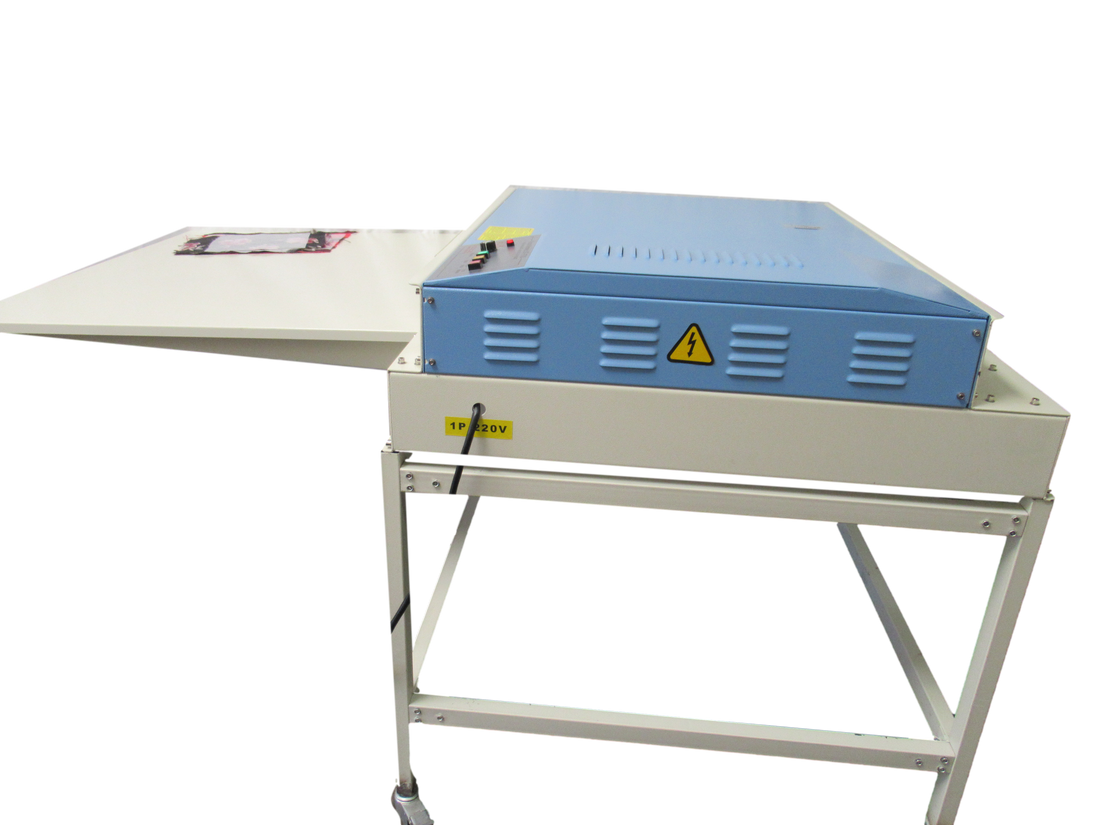

NT-7700 FUSING MACHINE

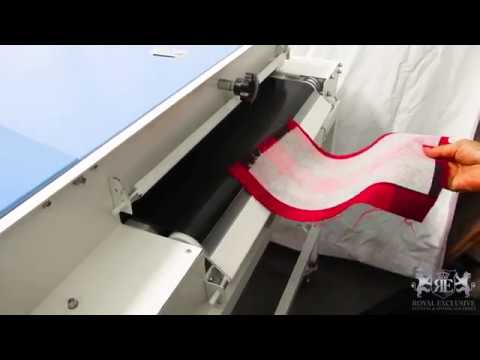

Fusing machine for all kinds of fabrics can be heat shrinkable to finalize the design and hot-melt line processing, it is applicable for various resin lining, non-woven lining material of the clothing lining sleeve, placket, chest liners and turn over the side of the hot-pressing sticky processing. Processed products are flat after a not easy dissection washing.

Fusing machine for opening the mouth uses continuous operation of desktop fusing machine, with simple structure, compact, easy to operate, do maintenance, and is an ideal enterprise product equipment.

Specs:

Fusing machine pressure: 1.5kg/cm^2

Belt Width: 500mm/600mm

Temperature adjustment range: 200C

Belt working speed (CVT): 0-7/min

Power: single-phase 220V, 50Hz/3P, 380V,50Hz

Motor power: 60W

Electrical heating power: 5.44kW/6.2kW

Overall size: 1750*1030*280mm/850*11130*280mm

Weight: 145kg/165kg
