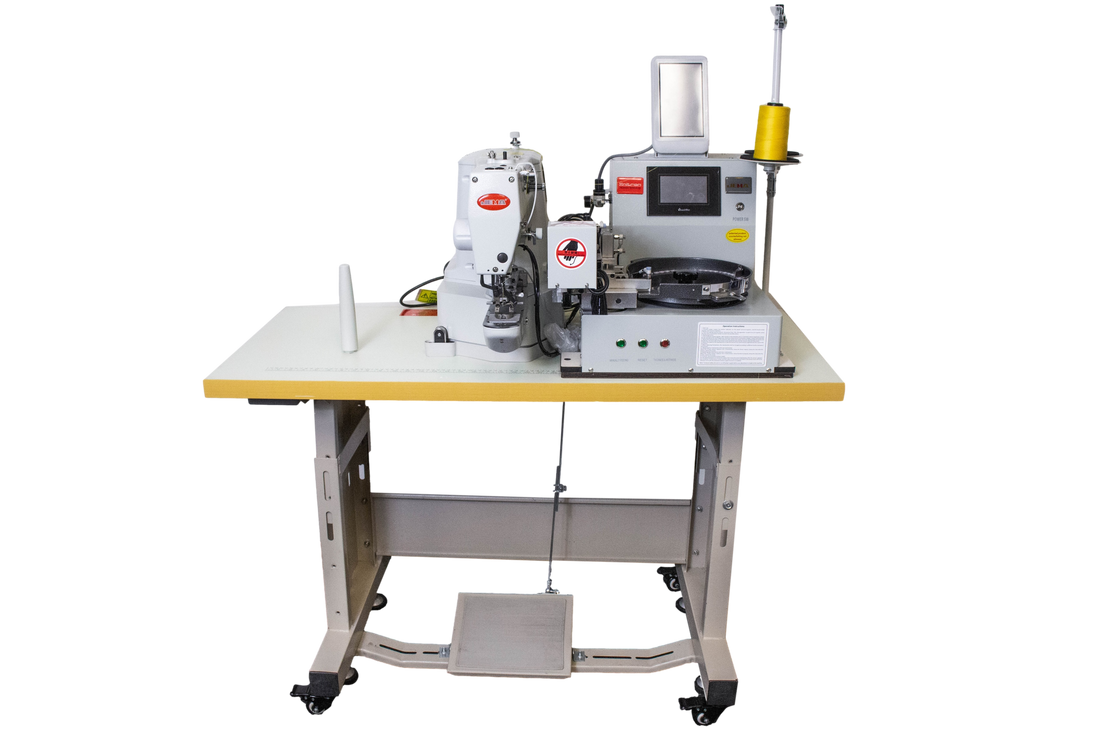

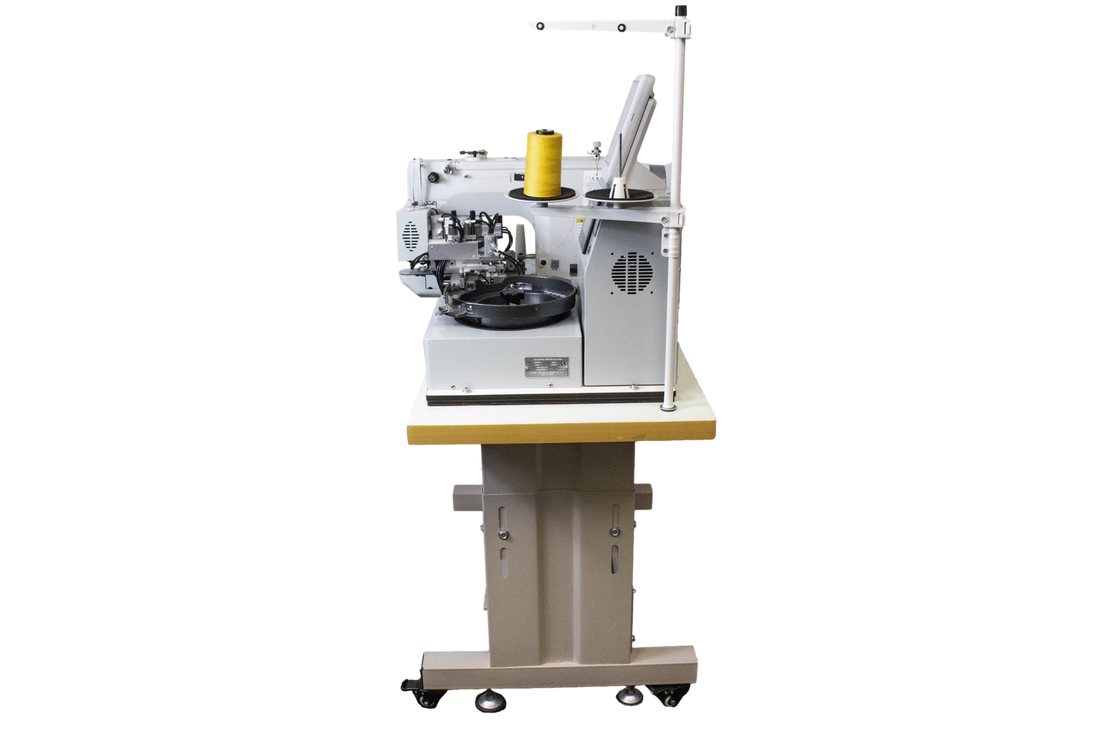

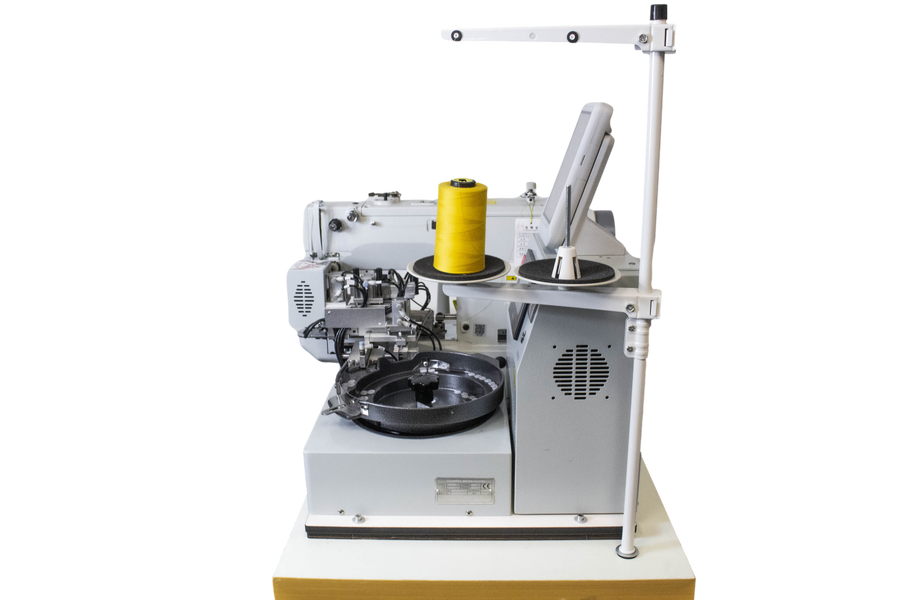

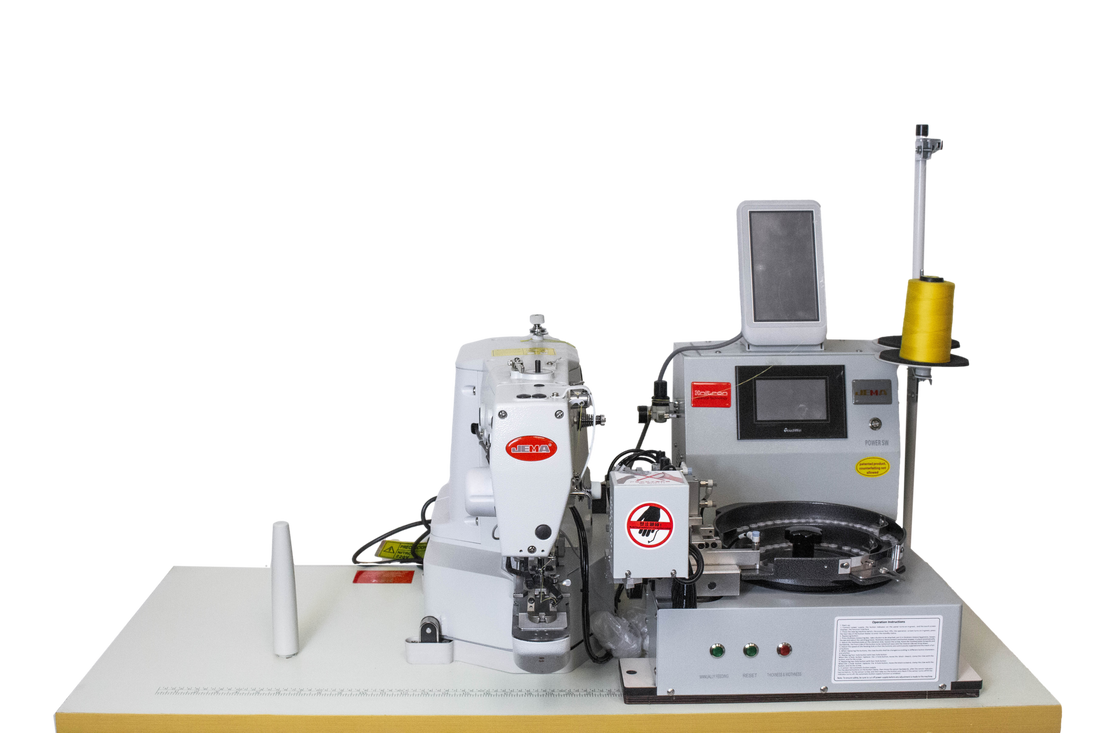

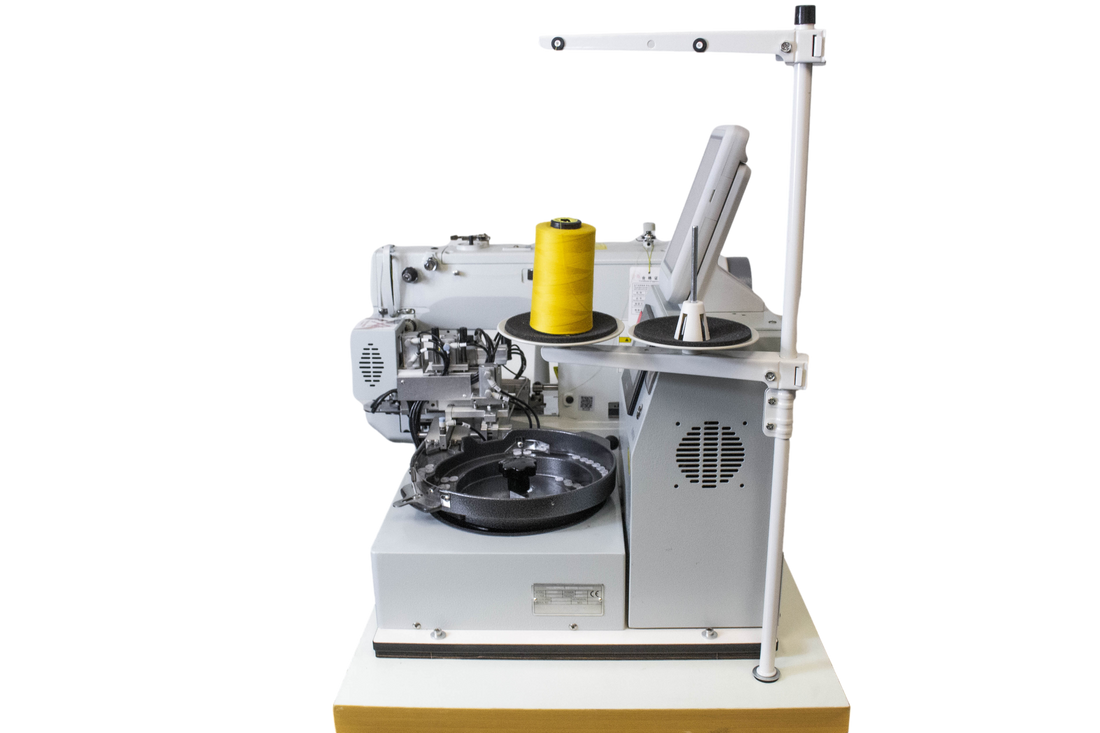

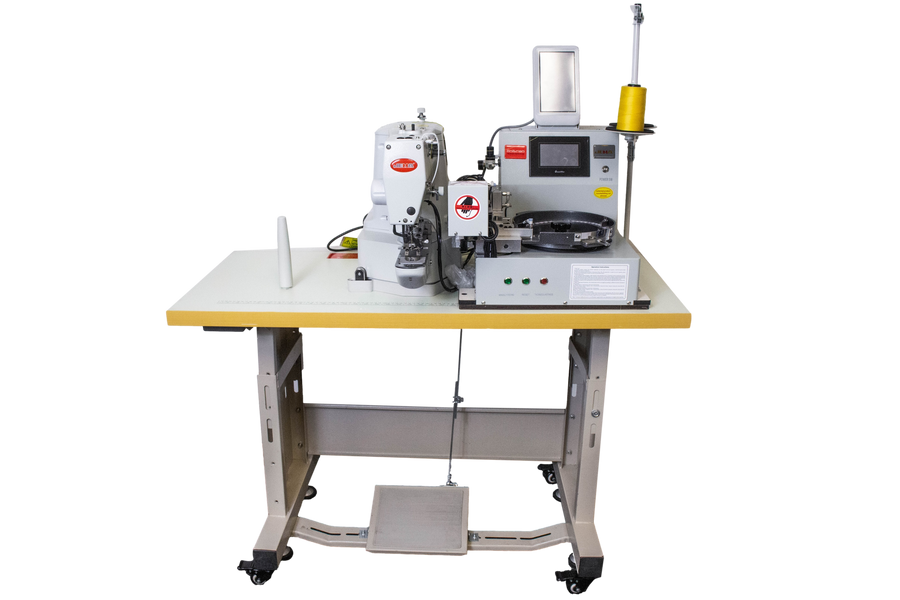

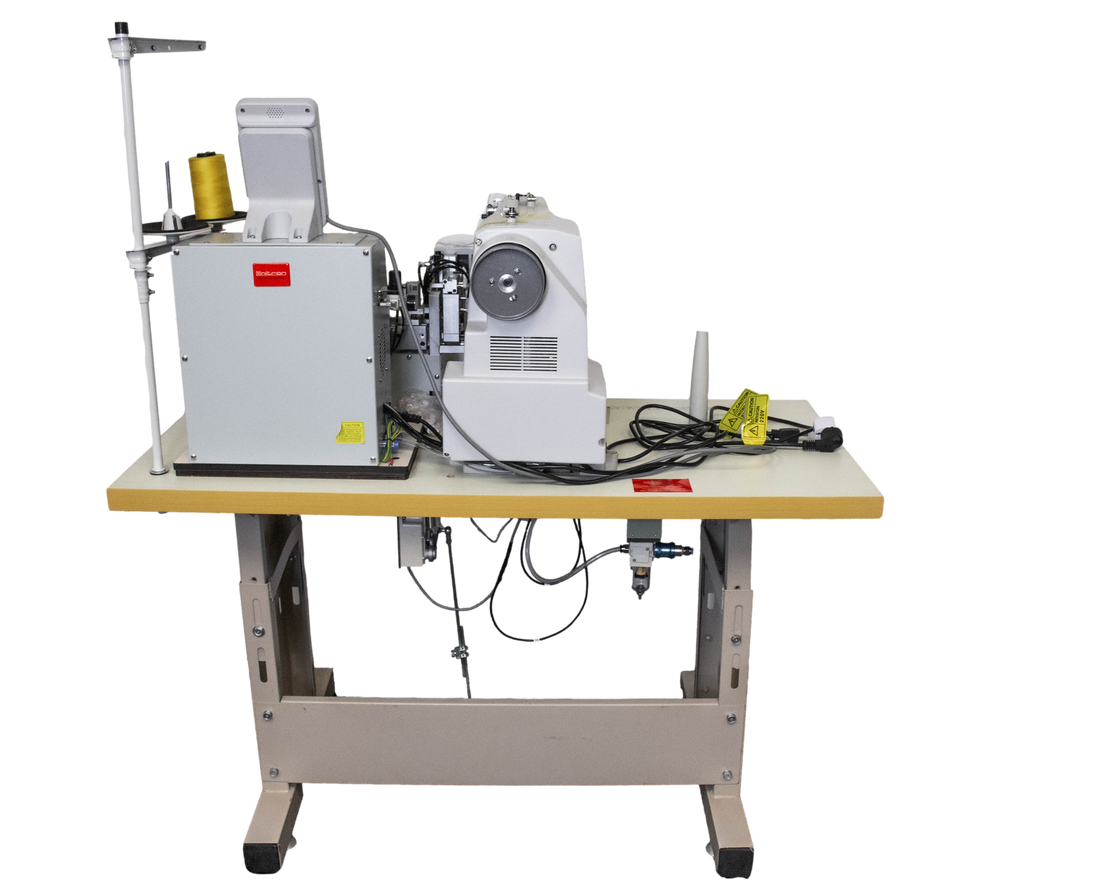

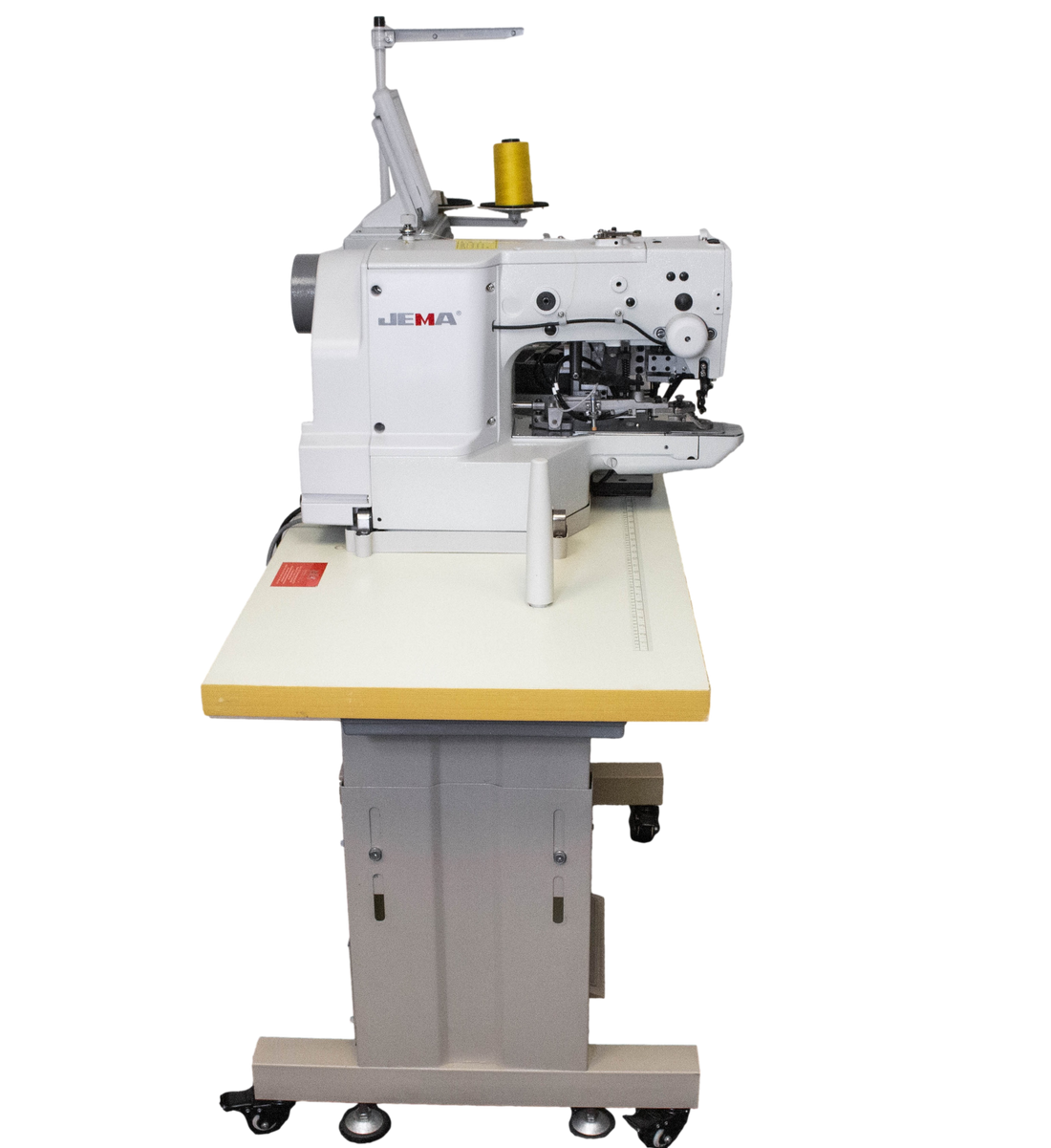

JM-988-438 AUTOMATIC BUTTON MACHINE
$7,675.00
- Description

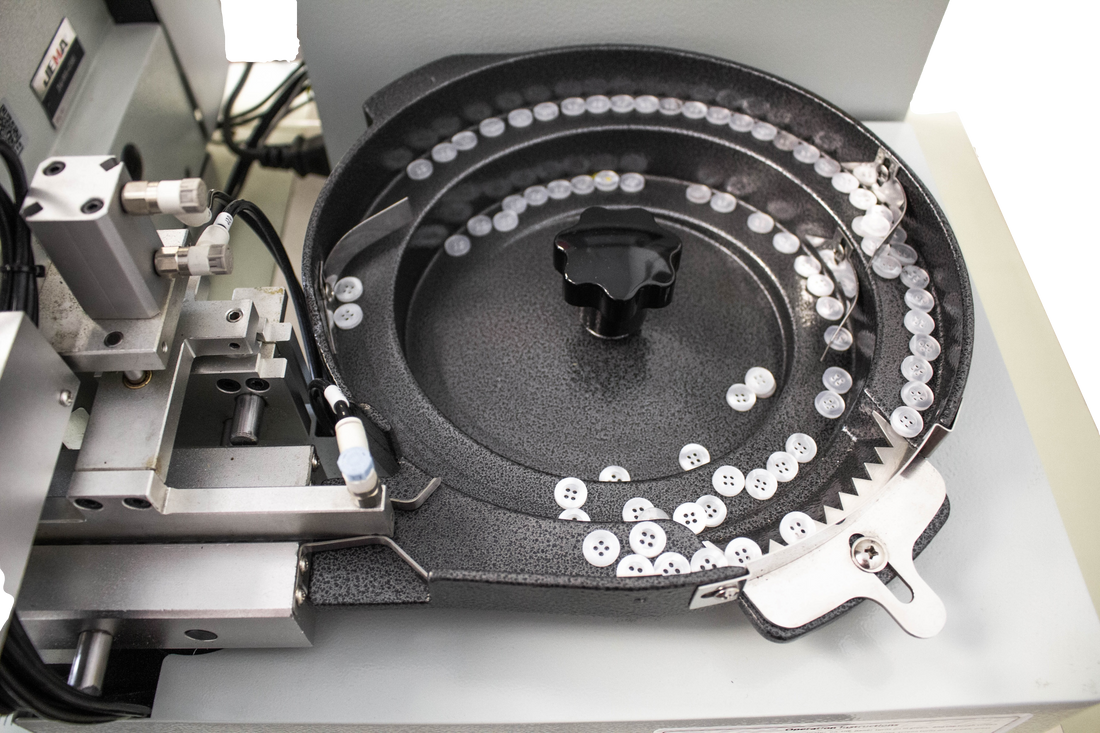

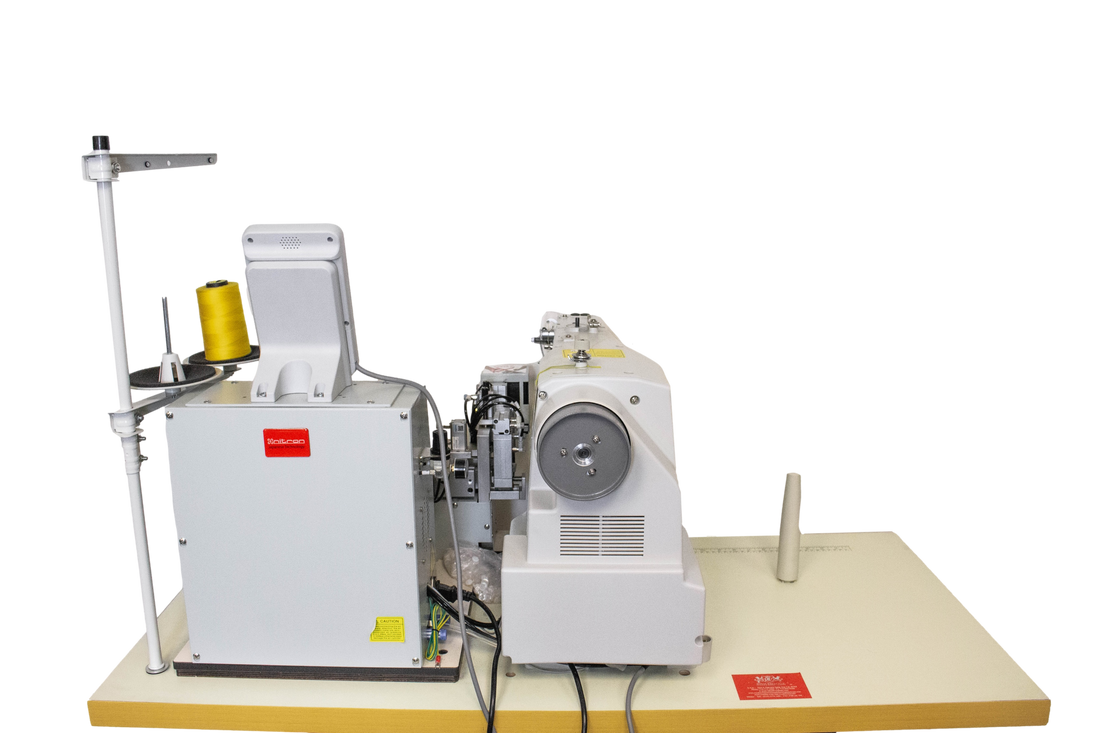

Automatic button feeding device is composed of feeding identification mechanism, pneumatic button transmission mechanism, button rotating and falling mechanism, thickness measuring mechanism, gate adjusting mechanism, mechanical arm button feeding device, thread loosening mechanism, as well as mechanical, electrical and gas part and control mechanism. It can be compatible with different brands and models of button sewing machine, featuring quick button feeding speed, high button feeding stability, small failure rate, significant reduction of labor intensity, improvement of production efficiency, simple operation, etc.
Specs
| Power supply voltage |
110/220V |
| Rated power |
260W |
| Package size |
580x630x500MM |
| Weight |
45KG |
| Rated button sewing speed |
40-50pcs/min |
| Continuous button feeding speed |
60-65pcs/min |
| Button feeding stability |
99.7% |
| Button diameter |
9-28mm |
| Suggested air pressure |
0.3-0.35Mpa |
