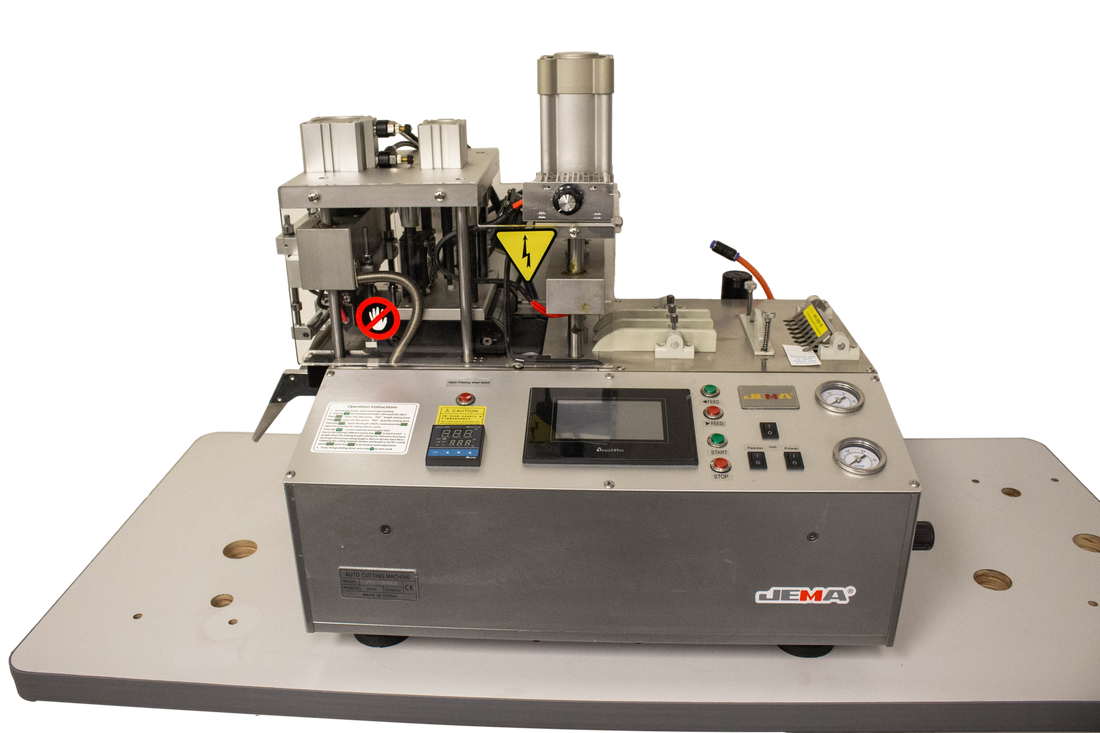

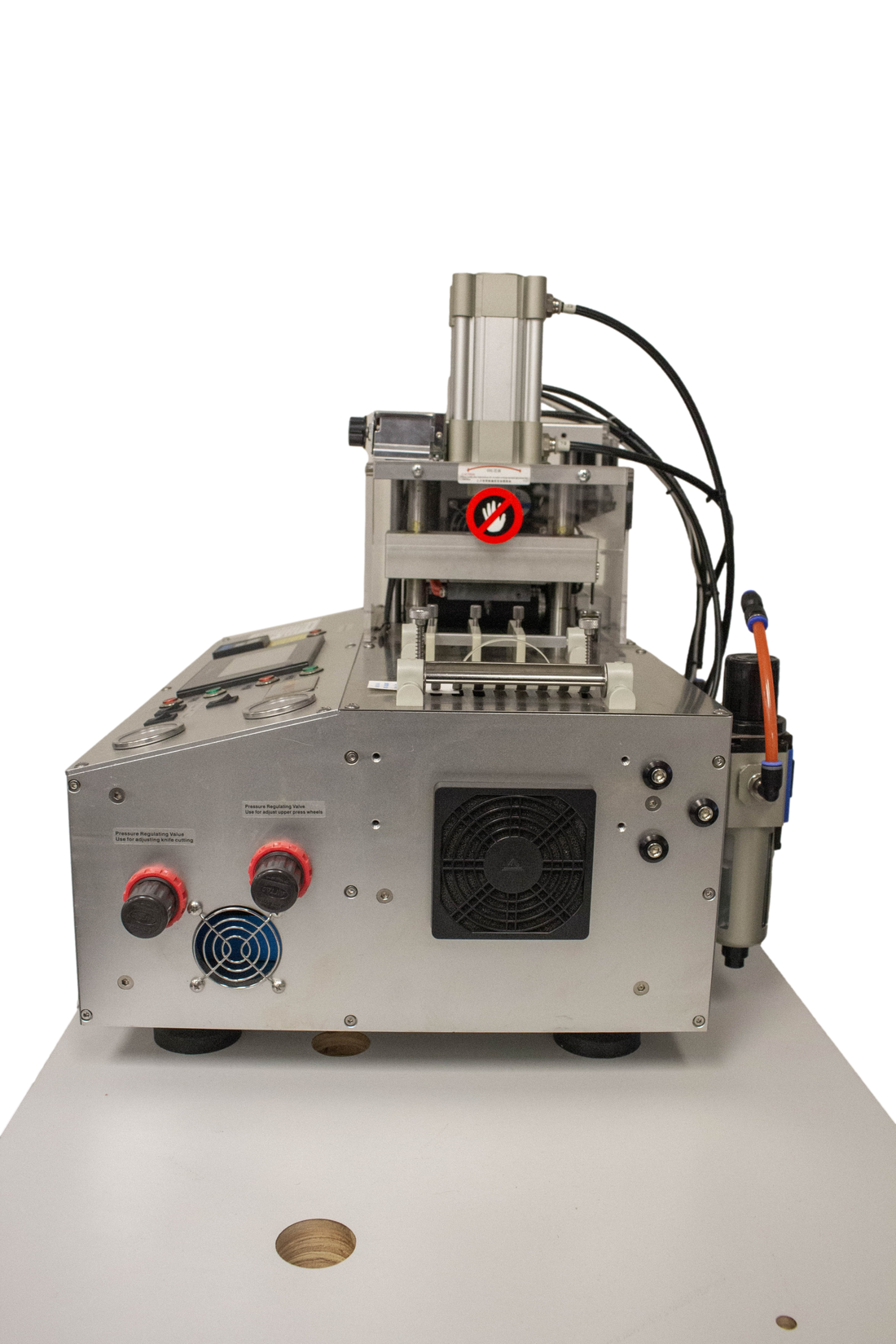

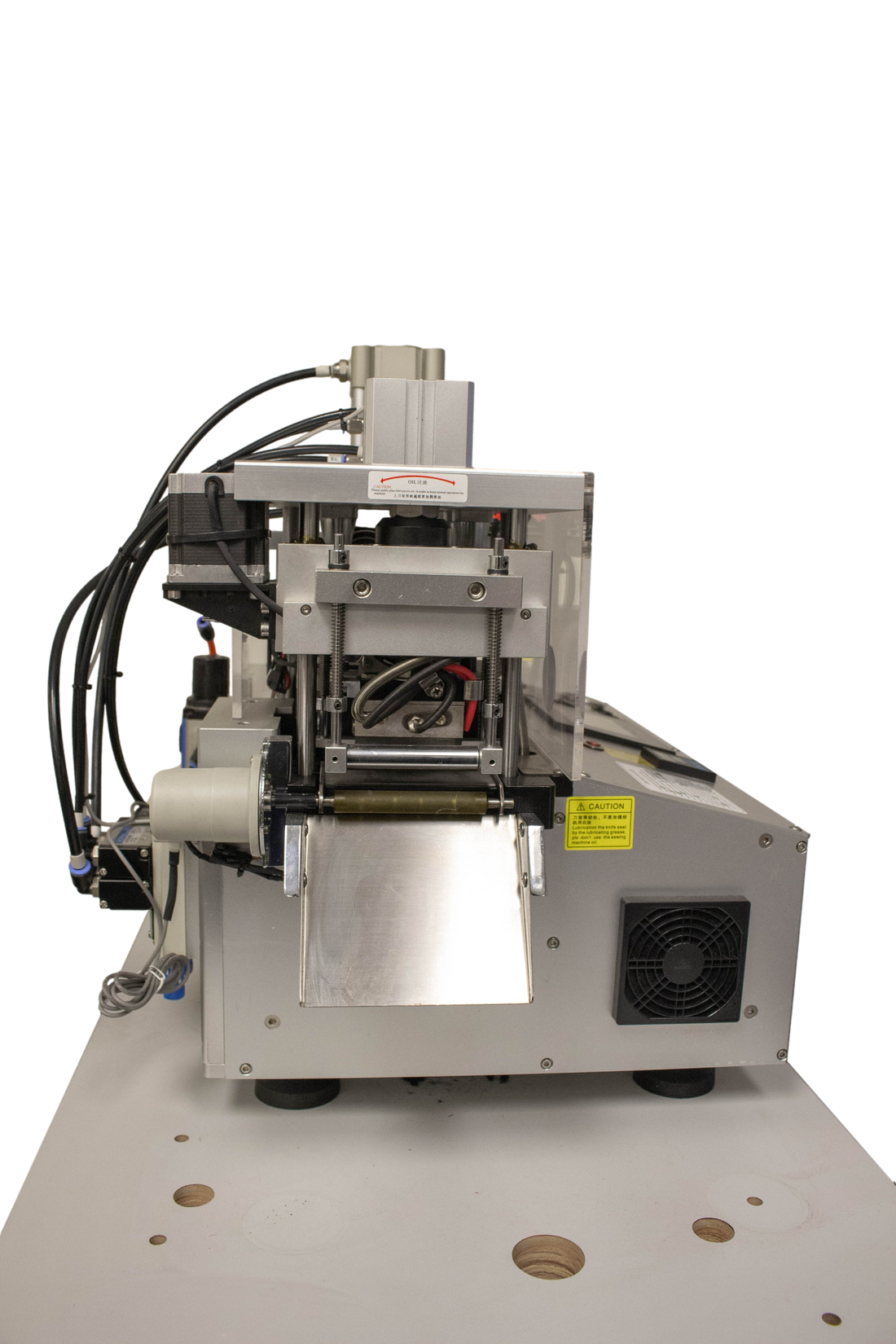

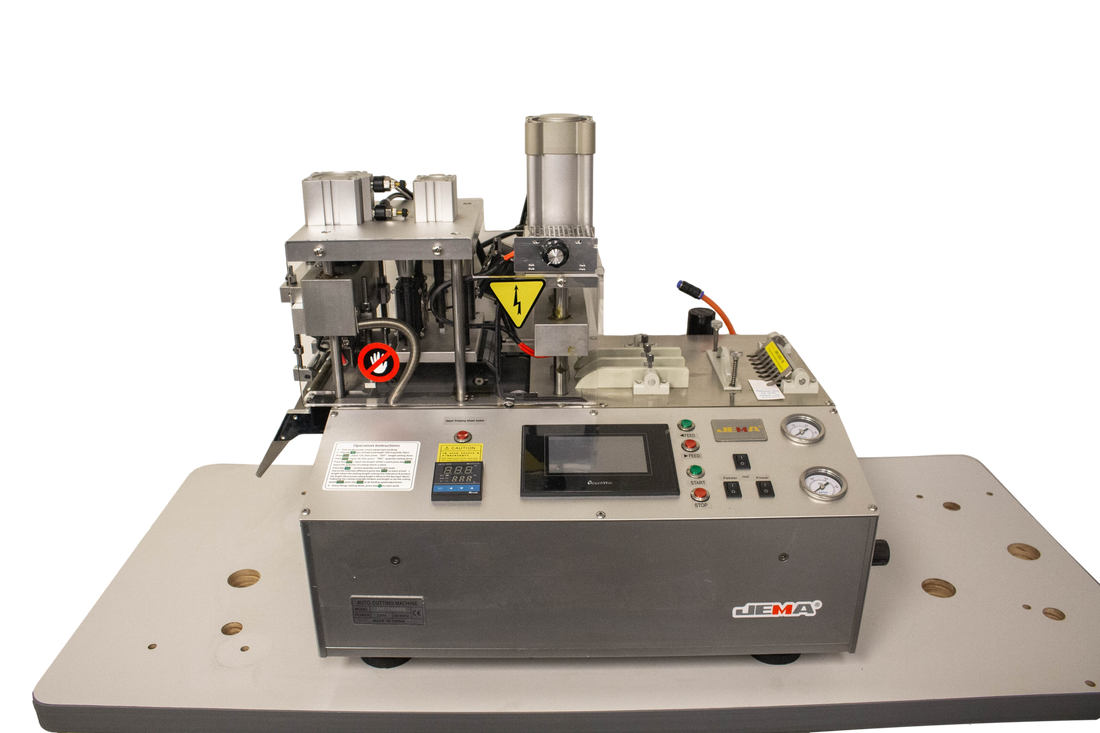

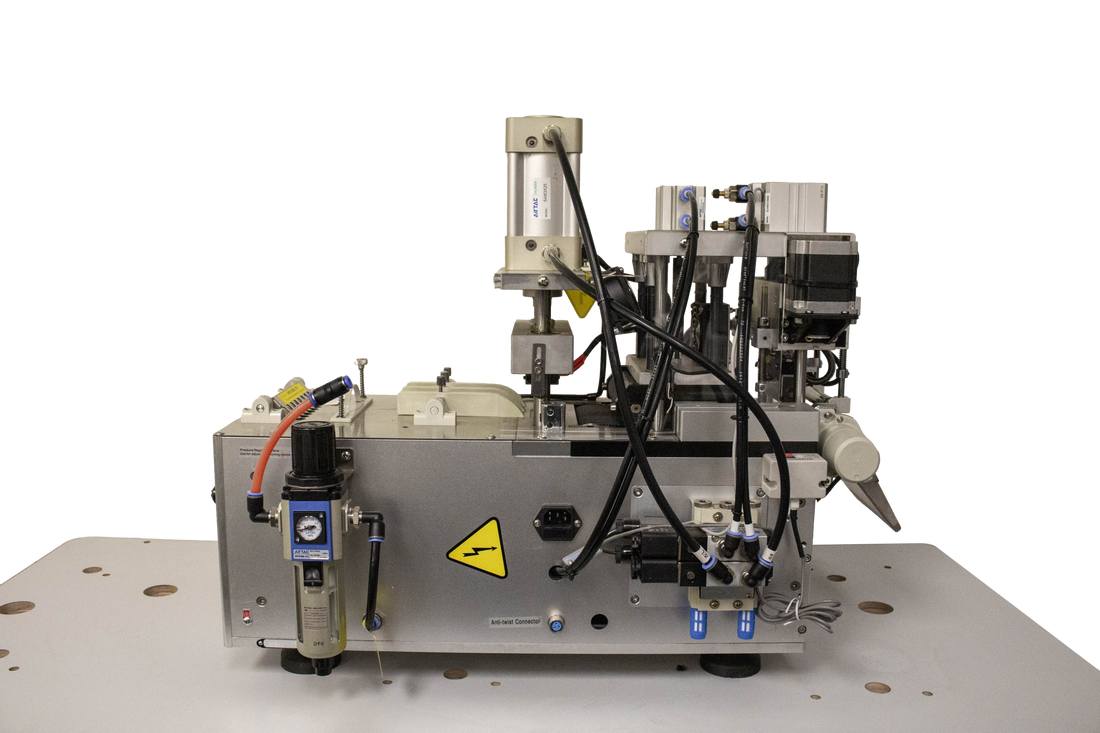

JM-150HX ANGLE INDUSTRIAL CUTTING MACHINE
$6,275.00
- Description
Fully automatic cutting, simple operation, wide application range, high cutting quality, smooth cutting surface, no loose wire.
Features:
high speed: It can cut 150 pieces per minute (take 50mm length as an example).
High precision: Each cut-off is monitored by a stepping motor to ensure the high accuracy of each operation. The photoelectric sensor can accurately locate the trademark. Accurately cut on the trademark cutting line.
Corner function: As long as you enter the length, width, angle, and other parameters, the computer will automatically cut out the various shapes you need, such as diamonds, parallelograms, squares, and pagodas.
Punching device: According to user needs, holes of different sizes and diameters can be punched.
Flat cut surface: The blade is made of high-quality steel. The hot knife can heat-seal the cut surface of colored ribbons and thin woven belts at high temperatures, and the sealing is smooth and without burrs and no loose threads.
Automatic operation: Just set the parameters you need, such as cutting length, quantity, angle, and so on. The rest of the work is done automatically by the computer.
Fault self-check: Once the cutter holder, no material, color mark sensor, and rotary cutter holder malfunction, the system will automatically display it on the screen.
Automatic pause: Once the materials are used up, the system will automatically stop working.
memory function: Before the switch is turned off, all currently set parameters are automatically stored.
high speed: It can cut 150 pieces per minute (take 50mm length as an example).
High precision: Each cut-off is monitored by a stepping motor to ensure the high accuracy of each operation. The photoelectric sensor can accurately locate the trademark. Accurately cut on the trademark cutting line.
Corner function: As long as you enter the length, width, angle, and other parameters, the computer will automatically cut out the various shapes you need, such as diamonds, parallelograms, squares, and pagodas.
Punching device: According to user needs, holes of different sizes and diameters can be punched.
Flat cut surface: The blade is made of high-quality steel. The hot knife can heat-seal the cut surface of colored ribbons and thin woven belts at high temperatures, and the sealing is smooth and without burrs and no loose threads.
Automatic operation: Just set the parameters you need, such as cutting length, quantity, angle, and so on. The rest of the work is done automatically by the computer.
Fault self-check: Once the cutter holder, no material, color mark sensor, and rotary cutter holder malfunction, the system will automatically display it on the screen.
Automatic pause: Once the materials are used up, the system will automatically stop working.
memory function: Before the switch is turned off, all currently set parameters are automatically stored.
Material can be cut
Various braided belts, Velcro, shoelaces, trademarks, and other nylon materials.
Various braided belts, Velcro, shoelaces, trademarks, and other nylon materials.
|
model
|
Cutting length (mm)
|
Maximum cutting width (right angle/bevel angle) (mm)
|
Maximum receiving height
(Mm)
|
50mm cutting speed (p/min)
|
Maximum blade temperature (℃)
|
Recommended air pressure
|
Voltage (v)
|
Punching diameter (mm)
|
power
(Kw) |
weight
(Kg)
|
Packing size L×W×H (mm)
|
|
JM--150HX
|
30-99999
|
65/40
|
-
|
150
|
420
|
0.2~0.6
|
110/220
|
2-8
|
1.05
|
77.5
|
820x570x780
|
