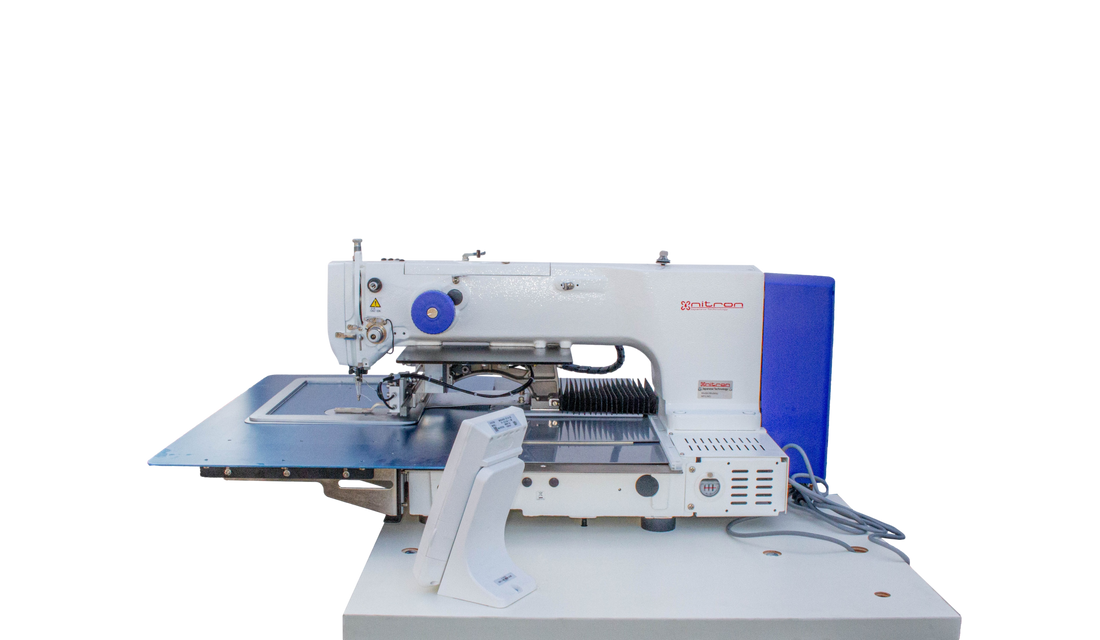

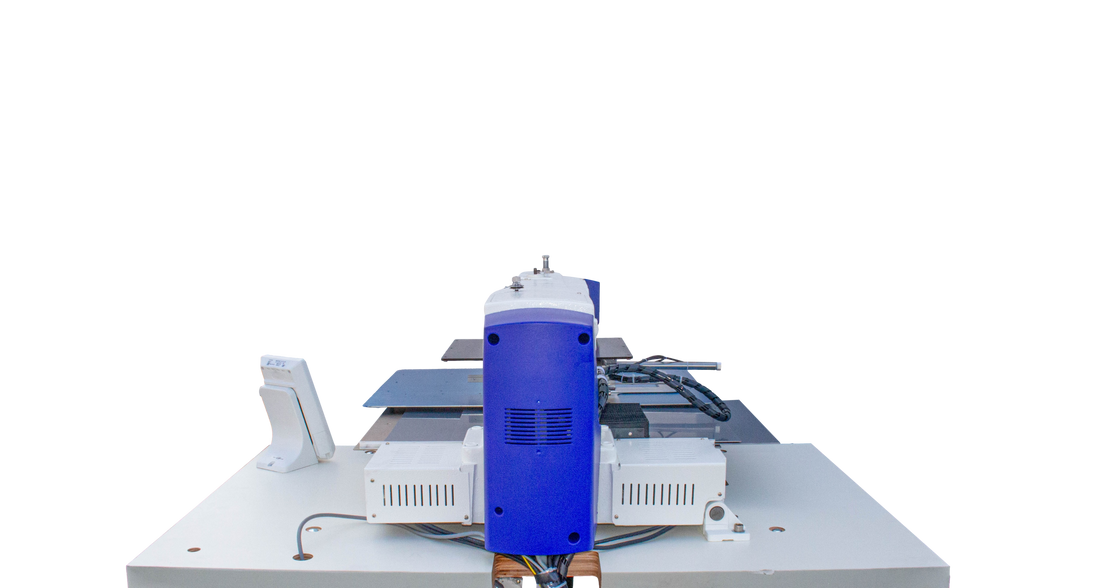

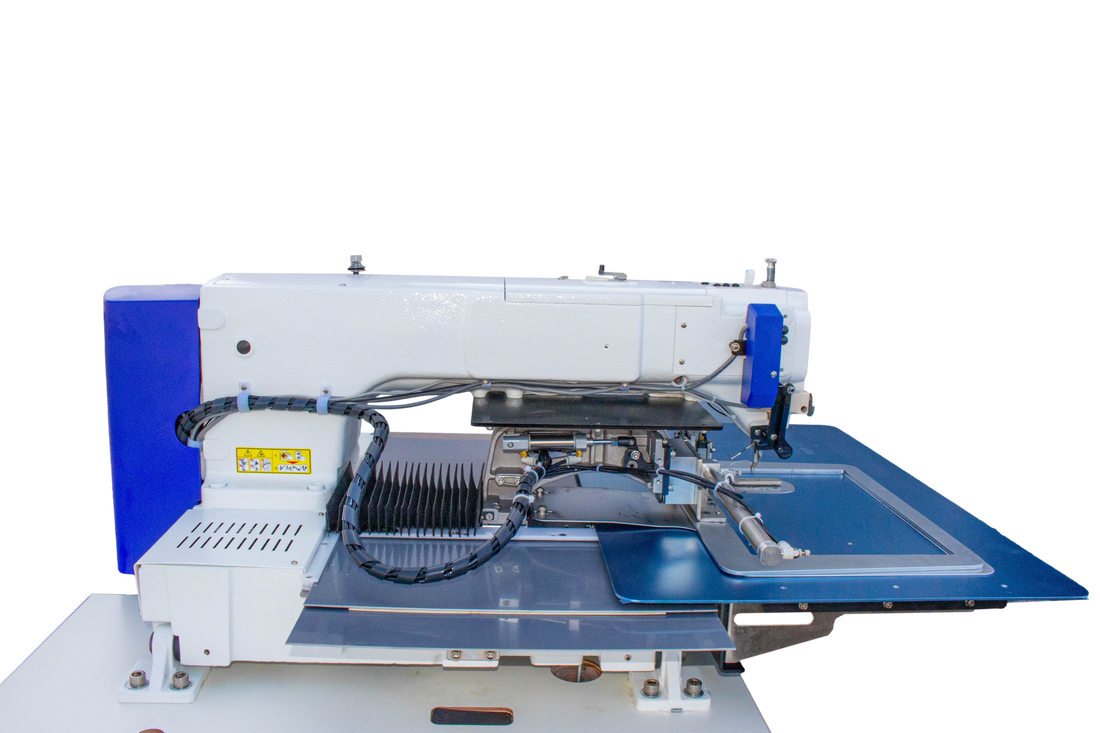

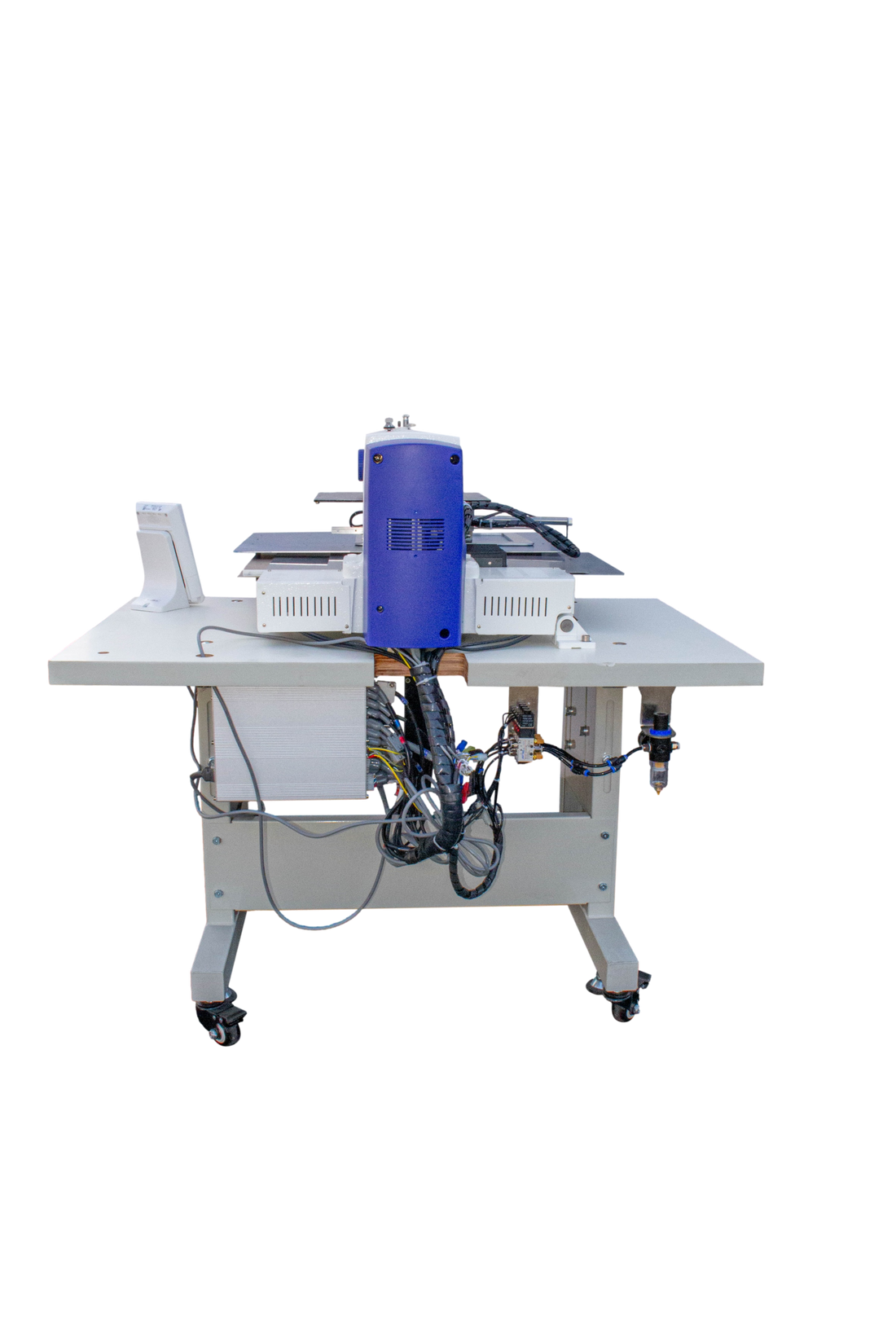

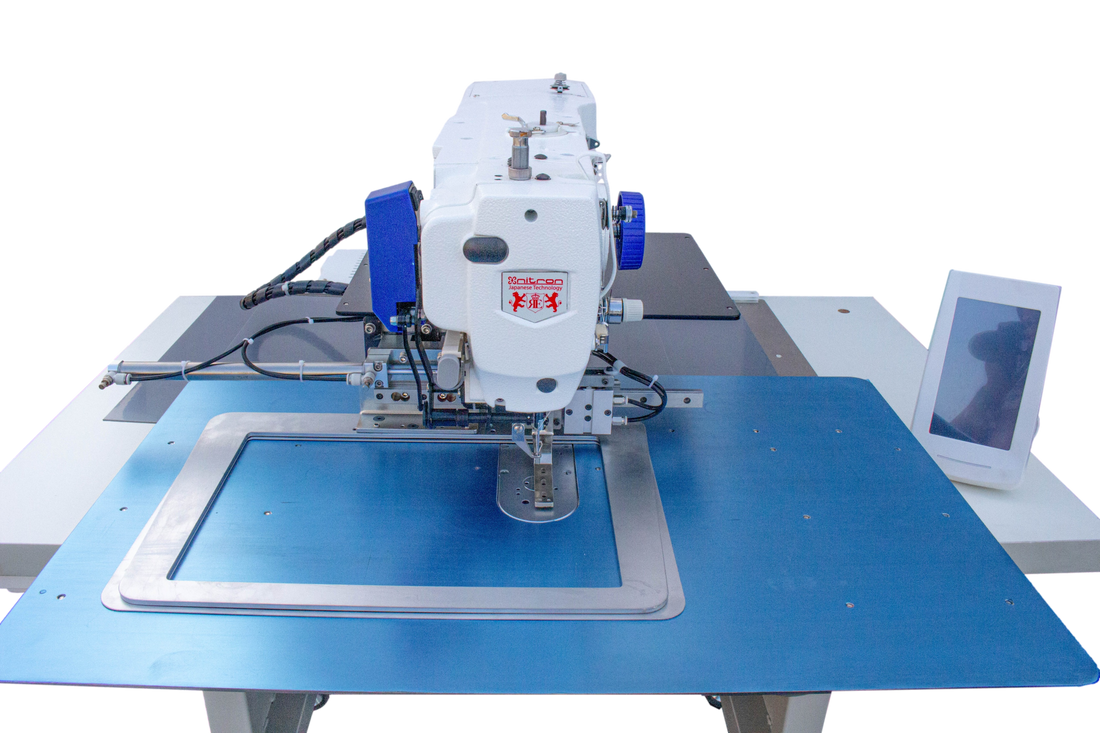

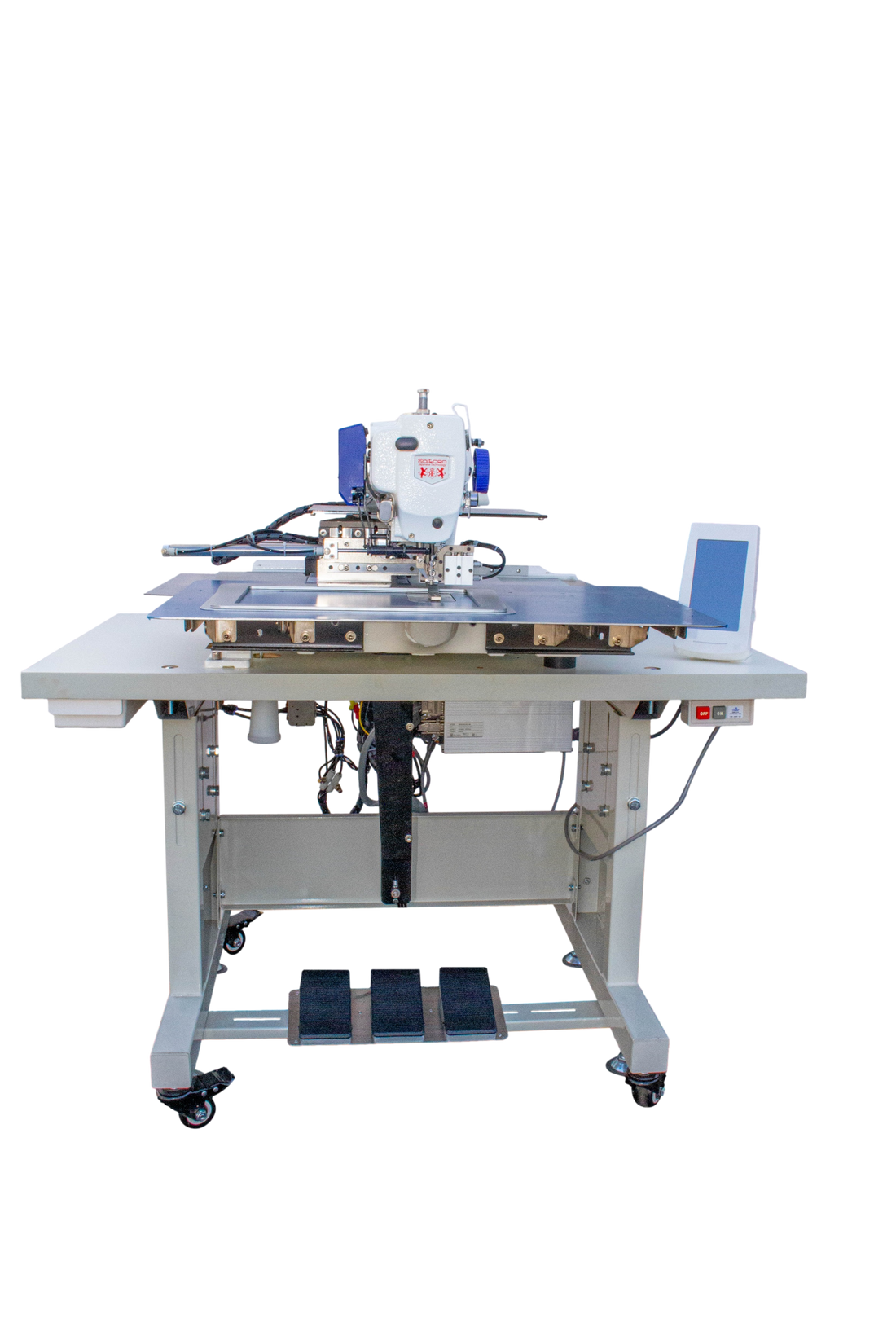

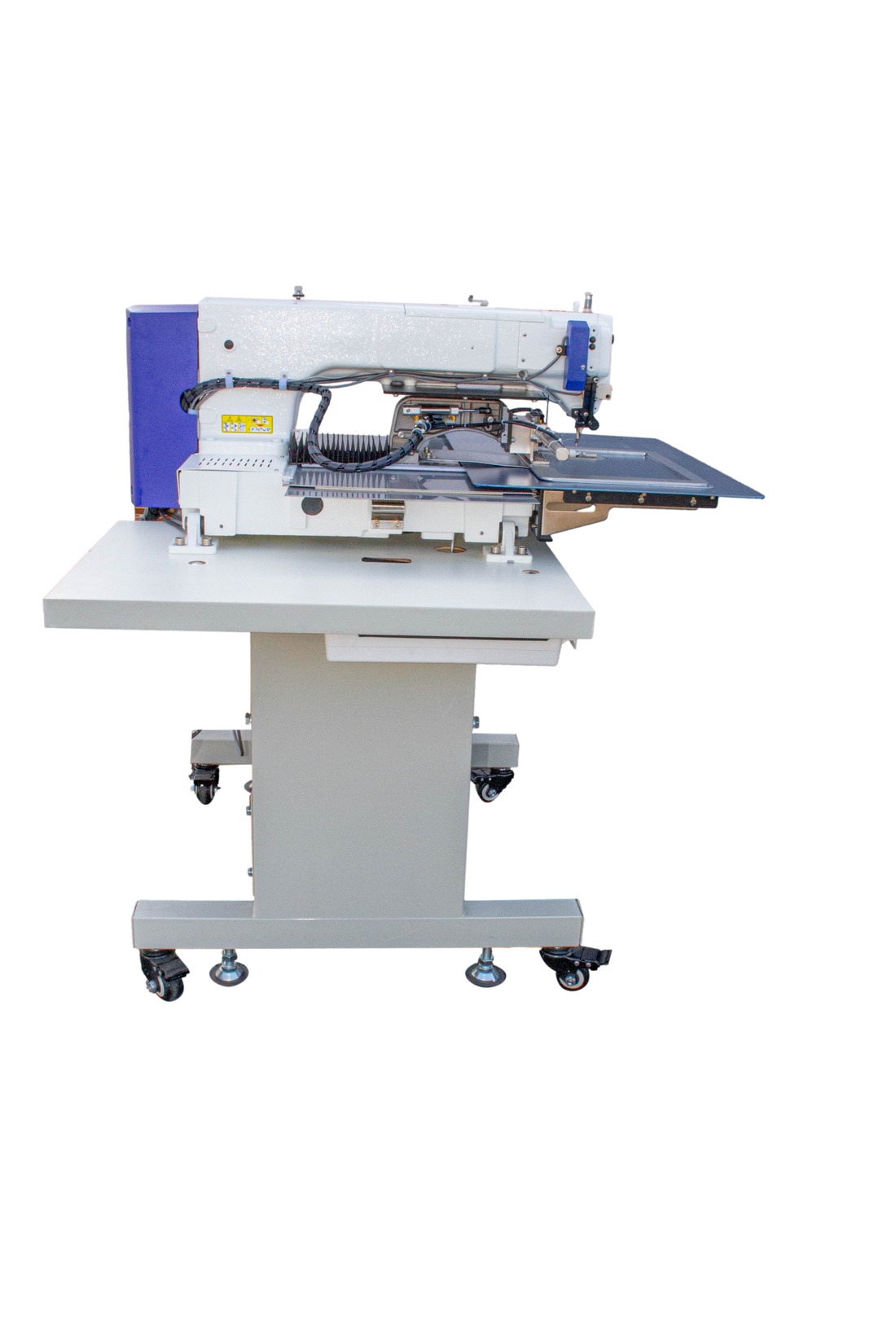

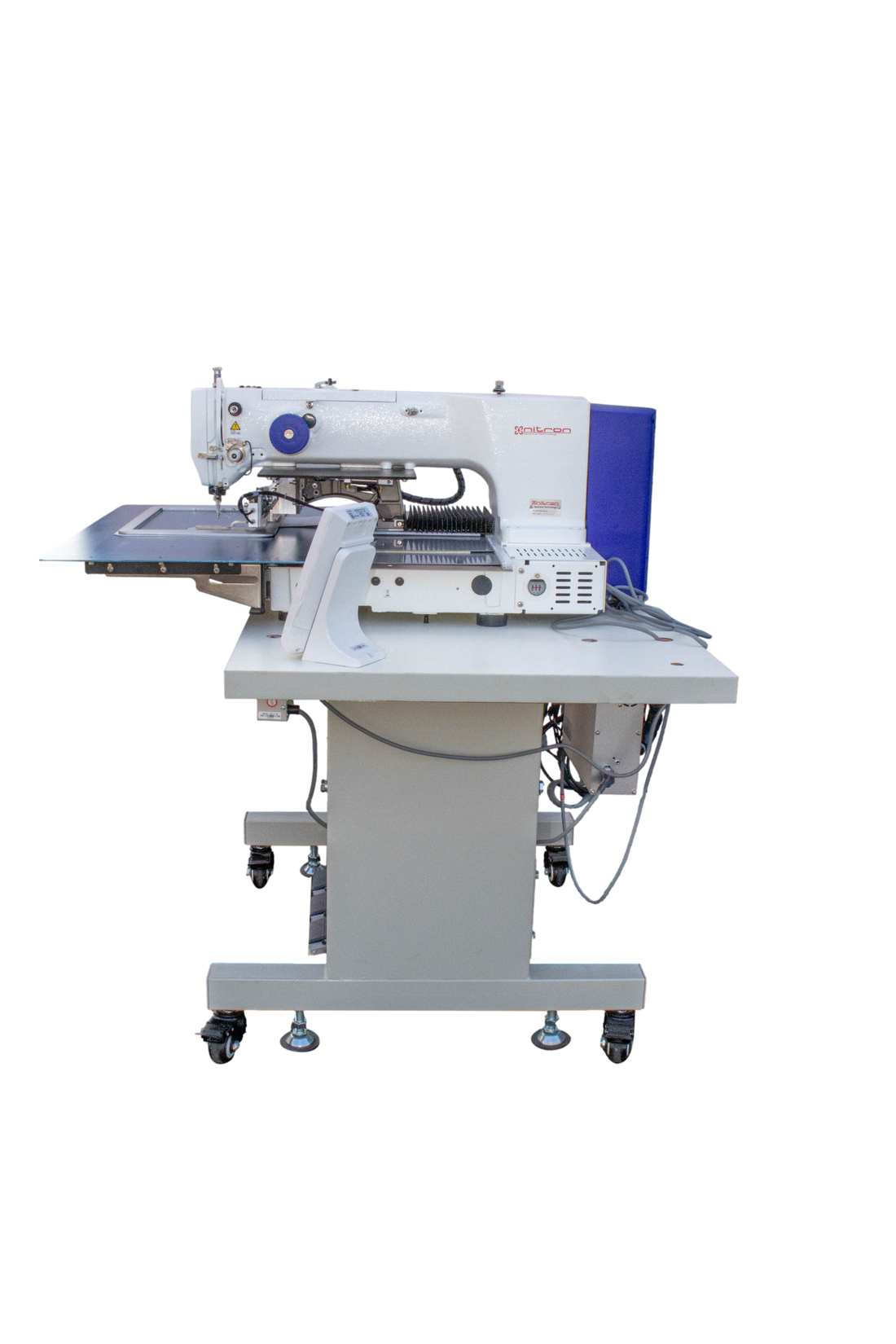

NT-3020-26 (MÁQUINA DE ETIQUETAS 30X20CM)

Optical sewing area: X-direction (left/right) 500mm (optional within the area), Y-direction Front/back) 160mm

Maximum sewing speed: 700rpm

Speed setting: 200-700rpm

Stitch length: 0.1-10mm

Sitch line: Single-needle and double-line lock stitch

Maximum number of Needle: 20,000 per pattern

Storable sewing data: 520 patterns (internal memory)

Data memory: Internal memory, USB memory

Needle bar stroke: 56.3mm

Thread stroke: take-up-level 9mm

Needle type: DYX3 #2230

Presser foot lift: 20mm

Material-presser plate lift: 25mm (max 30mm)

Shuttle hook: HAD-204

Bobbin: Large-scale bobbin

Thread trimmer system: Thermal trimming system Input voltage: AC 210/230V - Output voltage: AC2V

Thread: #8 to #10 (Synthetic)

Lubrication system: Manual oiling

Lubrication oil: Silicone oil

X-Y drive system: Stepping motor feedback control Timing belt drive system, intermittent or continuous feeding

Controller model: SC44X

Power: 200V-240V single-phase
