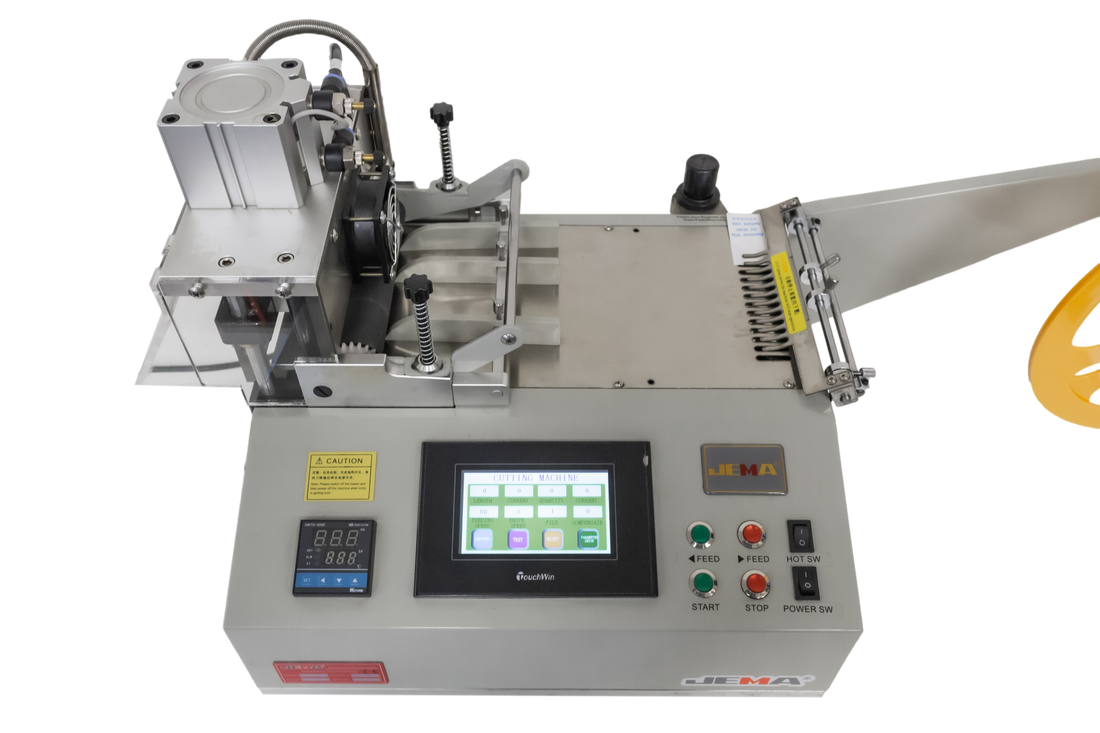

JM-120PLH NEW GENERATION PENUMATIC HOT & COLD CUTTING (135MM KNIFE) MACHINE

The multi-function auto-cutting machine is a new special integrating pneumatic, mechanical and electrical controls, which can control the mechanical and cylinder actions automatically through the computer program and automatically cut off the belt-shaped objects such as woven belts, plastic hose, shoelaces, trademarks at different widths, lengths and angles according to the length and quantity required. The precision of your products will be higher thanks to the compensation function designed according to the elasticity of the materials to be cut. Options: (the infrared positioning device: trademarks of different widths can be cut off accurately through positioning by the infrared sensor system). With the function of automatic stopping when there is no material and features of cutting of thick materials, high precision, high cutting speed, flat cut surface free of burr, cutting of nylon materials without loose yearns, simple operations, etc. This machine is the first choice to help you to increase production efficiency, improve product quality and save labor costs.

SPECIAL FEATURES:

HIGH SPEED: IT CAN CUT 170 PCS PER MINUTE (50MM LONG)

ACCURACY: FASTER AND ACCURATE CUT BY THE SENSOR AND SOFTWARE

CUTTING TYPE: MELTING & CUTTING BY HOT KNIFE, WOVEN LABEL IS CUT NEATLY WITHOUT FRAYING BUT NOT FOR HEAVY MATERIALS AND INSTALLED WITH ANTI-STATIC ELECTRICITY DEVICE

CUTTING TIMES:  IT CAN SET THE QUANTITY OF CUTTING TIMES TO ACHIEVE GOOD QUALITY CUT.

CUTTER SPEED: IT CAN SET THE CUTTER SPEED FOR SOME THICK AND STRONG MATERIALS TO ACHIEVE CUTTING EFFECTIVE

TOUCH PANEL CONTROL SYSTEM: ADOPT PLC SYSTEM, MULTILINGUAL CONVERSION BY THE TOUCH PANEL, THE PAGE OF FUNCTION IS INTUITIVE AND EASY OPERATE, SETTING IS CONVENIENT.

COMPENSATION: AFTER ACTUAL LENGTH DATA IS INPUTTED, ACCURATELY CUT OUT THE LENGTH TO MEET THE SYSTEM SETTINGS

FAULT SELF CHECK: CUTTING SENSOR ERROR, NO SUPPLY, THE ERROR CODE WILL SHOW ON THE SYSTEM PANEL DIRECTLY IF THE FAULT HAPPENED

AUTOMATIC OPERATION: AUTOMATIC STOPPER: IT WORKS AUTOMATICALLY ONLY BY SETTING SPEED-LENGTH QUANTITY AND TEMPERATURE. IT STOPS AUTOMATICALLY IF MATERIALS RUN OUT DURING OPERATION.

APPLICATIONS: BELT LOOP, BAG BAND, SHRINK TUBE, STRING, ELASTIC BAND, PLASTIC ZIPPER ETC.
